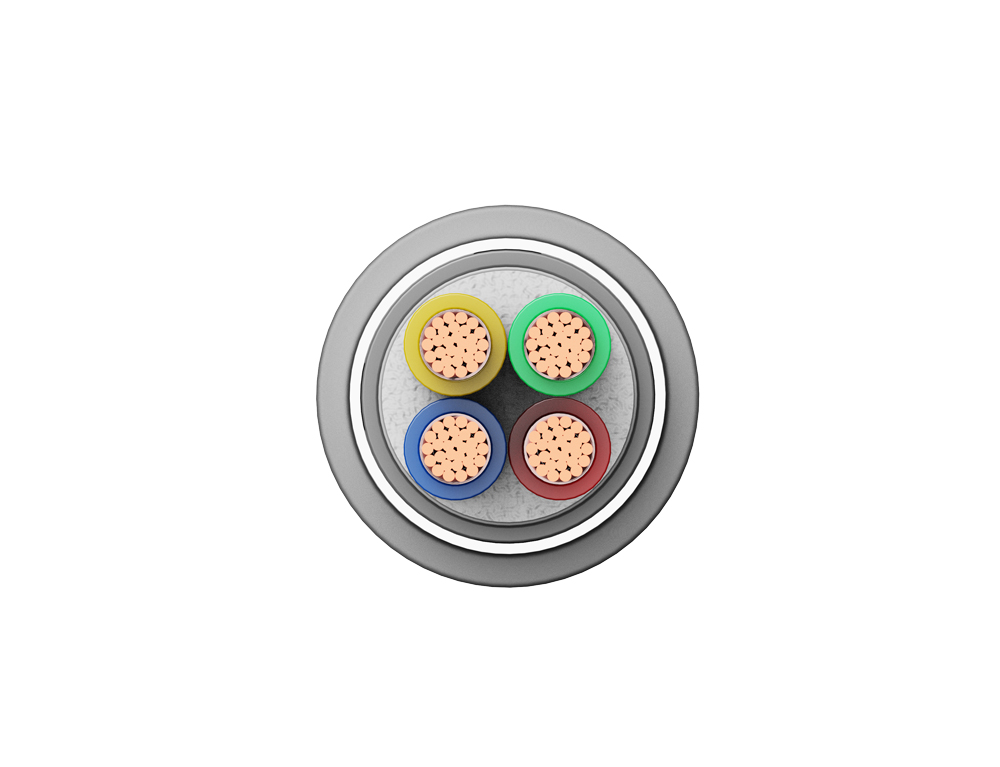

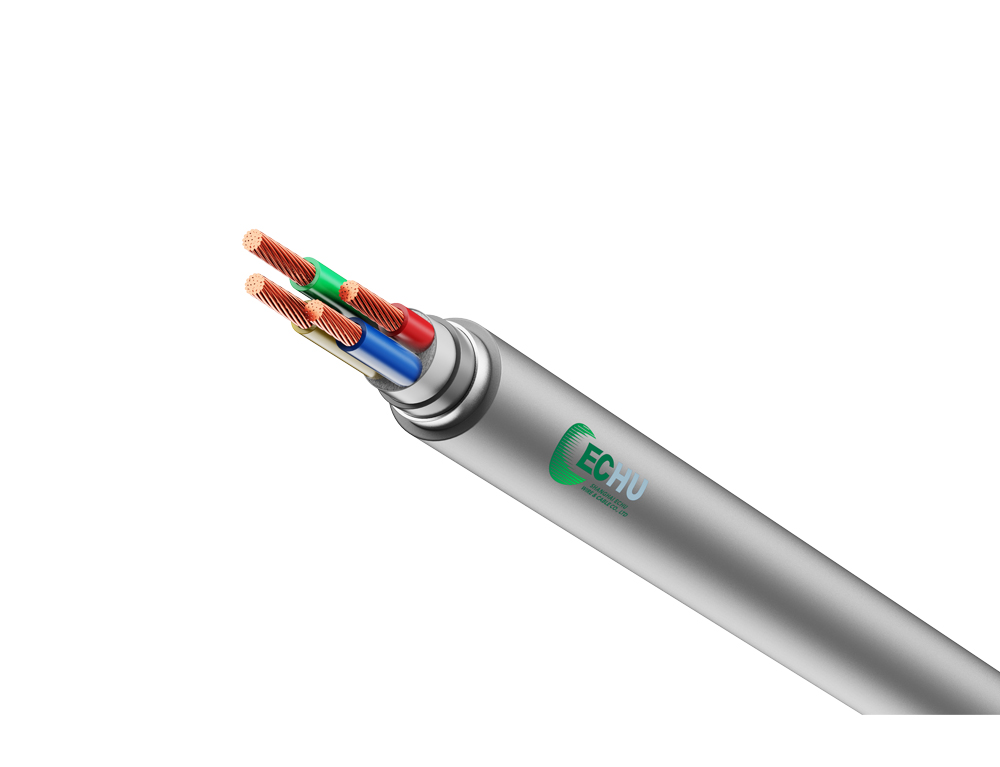

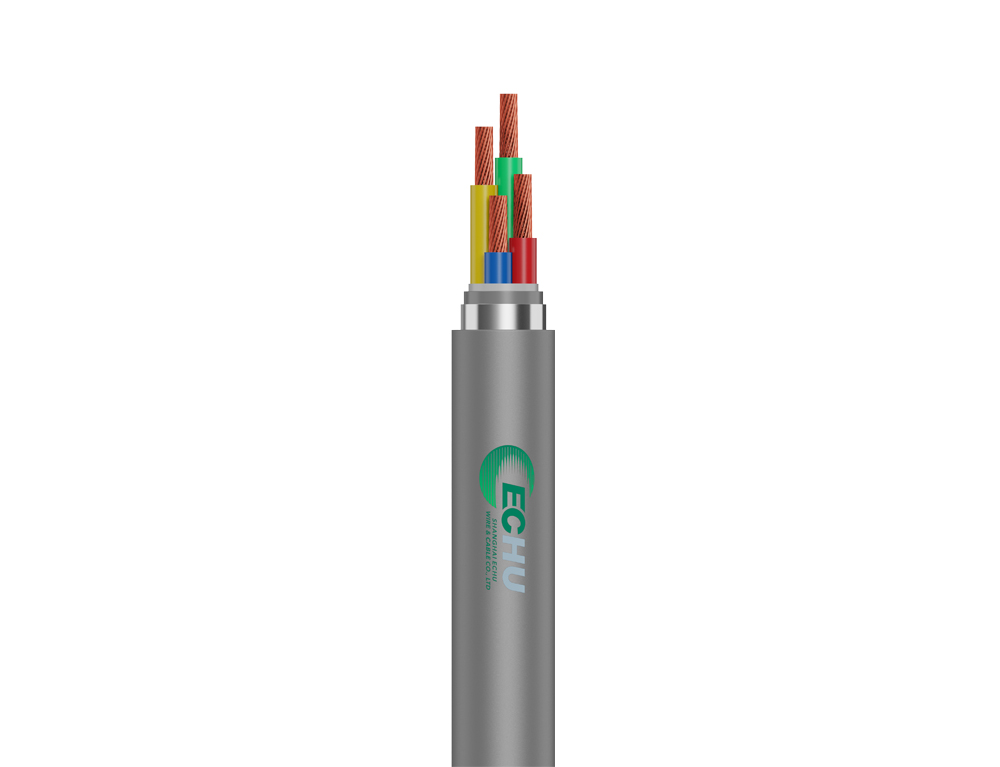

The WDZ-YJY23 Steel Armored LSZH Flame Retardant Cable is a high-quality power cable designed for safety and durability. It features a conductor made of high-purity oxygen-free copper, with cross-linked polyethylene (XLPE) insulation, and a low-smoke, halogen-free (LSZH) flame retardant polyolefin sheath. The steel tape armor enhances the cable's resistance to external pressure, making it ideal for applications requiring reliable performance under 600/1000V. Compliant with national standards, the cable ensures superior electrical conductivity and fire safety.
- Used in AC rated voltage systems of 0.6/1kV
- Suitable for power supply and distribution systems
| Electrical Performance | Voltage | AC 0.6/1kV |
| Rated Temperature | 90°C | |
| Construction | Conductor | Bare Copper |
| Insulation | Cross-linked Polyethylene (XLPE) | |
| Inner Sheath | Low Smoke Halogen-Free Polyolefin | |
| Armor | Galvanized Steel Tape Armor | |
| Outer Sheath | Low Smoke Halogen-Free Polyolefin | |
| Flame Retardancy | Complies with IEC 60332-1-2 standard. | |
Sheath Color | Standard color is black; other colors can be customized according to customer requirements. | |
