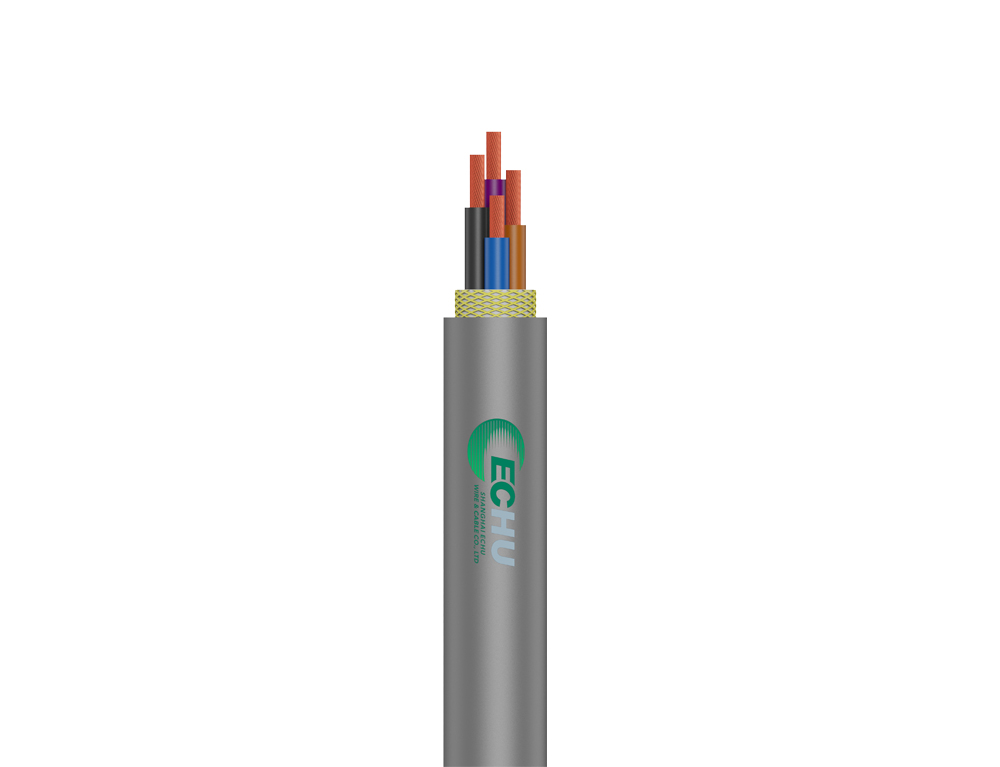

The WDZ-RYYP Shielded LSZH Flame Retardant Cable features flexible soft conductors made of high-purity oxygen-free copper, delivering superior conductivity. Encased in low-smoke, zero-halogen (LSZH) polyolefin insulation and sheath, it ensures enhanced fire safety and minimal toxic emissions. The cable’s braided shielding provides excellent anti-interference capabilities, making it ideal for environments requiring high reliability and reduced signal disruption. Suitable for various industrial and commercial applications.
- Suitable for control circuits at AC voltage of 450/751V and below
- Ideal for monitoring circuits
- Applicable for protective circuits
| Electrical Performance | Voltage | AC 300/300V |
| Rated Temperature | 90°C | |

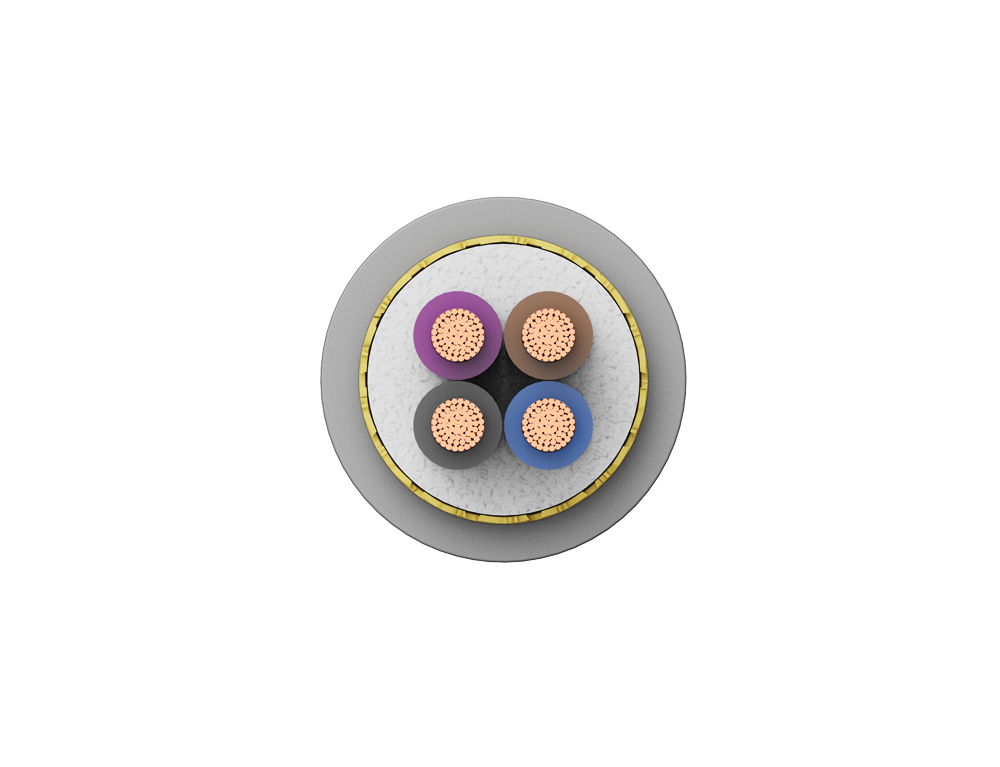

| Construction | Conductor | Bare Copper |
| Insulation | Low Smoke Zero Halogen Polyolefin | |
| Braiding | Bare Copper or Tinned Copper (Optional) | |
| Sheath | Low Smoke Zero Halogen Polyolefin | |
| Flame Retardancy | Compliant with IEC 60332-1-2 | |
| Default Sheath Color | Black (Other colors can be customized according to customer requirements) | |
