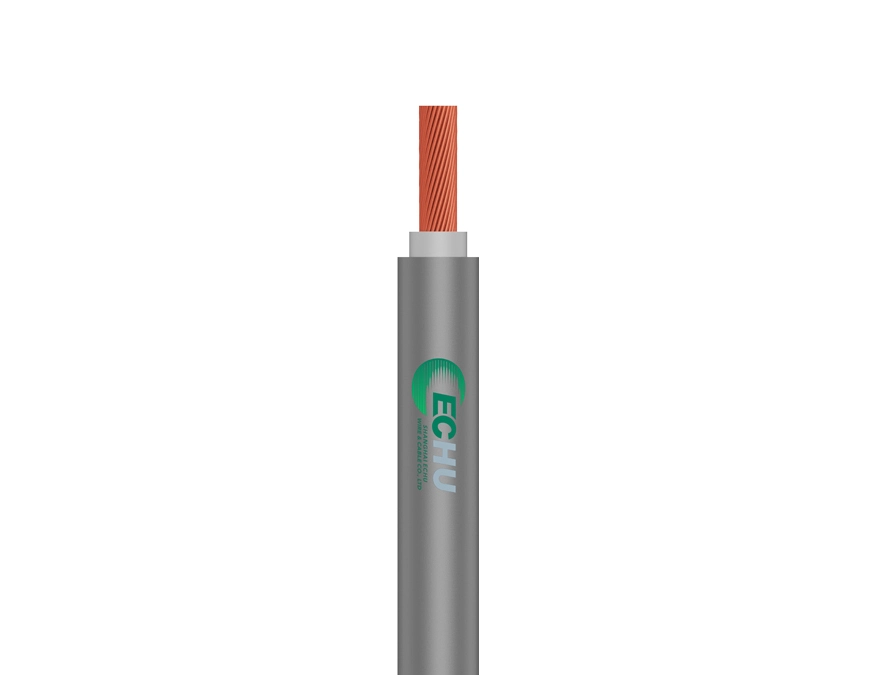

The ESP15BB-K Energy Storage Cable is designed for connecting battery packs and inverters in energy storage systems with a DC 1500V rating. It features conductors made of tinned or bare copper strands, ensuring optimal conductivity. The cable is insulated with specialized 90-degree EPDM rubber, providing excellent electrical insulation, and is sheathed with chlorinated polyethylene (CPE) for enhanced durability and protection. Ideal for high-performance energy storage applications.
- Used in mobile energy storage stations
- Connections between batteries in energy storage demonstration stations
- Battery connections in wind energy storage systems
- Connections in peak shaving energy storage systems
- Battery-to-inverter connections
- BMS (Battery Management System) connections
| Electrical Performance | Voltage | DC 1500V |
| Rated Temperature | 90°C | |
| Construction | Conductor | Tinned wire/bare copper |
| Insulation | Ethylene Propylene Rubber (EPR) | |
| Sheath | Chlorinated Polyethylene (CPE) | |
| Flame Retardancy | Complies with IEC 60332-1-2 | |
| Standard Sheath Color | Red or black | |
| Other colors are available upon customer request | ||
