ETHERNET FLEX CAT6 Cable

ETHERNET FLEX CAT6 Cable

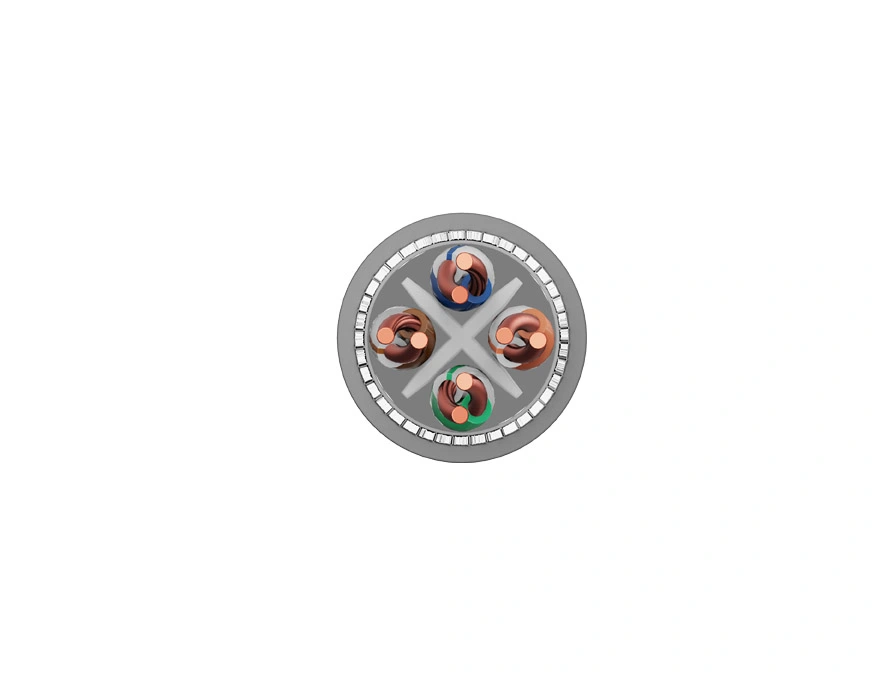

The Ethernet Flex CAT6 Cable is designed for industrial use, featuring high-purity oxygen-free copper with seven twisted strands for low resistance. It offers minimal dielectric constant and high-density HDPE insulation. The cable is shielded with aluminum foil, Mylar, and braiding, providing superior protection against electromagnetic interference. Capable of handling frequencies up to 250MHz, this cable ensures reliable, high-performance data transmission in demanding environments.

Contact Sales

Applications of ETHERNET FLEX CAT6 Cable

- High-speed data cable for cloud computing centers

- Suitable for large data rooms

- Ideal for office network infrastructure

- Comprehensive cabling in residential areas

- Effective in industrial buildings

- Supports limited flexible applications

Technical Data of ETHERNET FLEX CAT6 Cable

Electrical CharacteristicsImpedance100 Ohms
Frequency Range250 MHz
Rated Temperature80°C
ConstructionConductorStranded with 7 Bare Copper Wires
InsulationHigh-Density Polyethylene (HDPE)
BraidTinned Copper Wire
Jacket

Polyvinyl Chloride (PVC)

Flame RetardanceComplianceMeets the requirements of IEC60332-1-2
Jacket ColorDefaultGray
Other colors available upon request.
