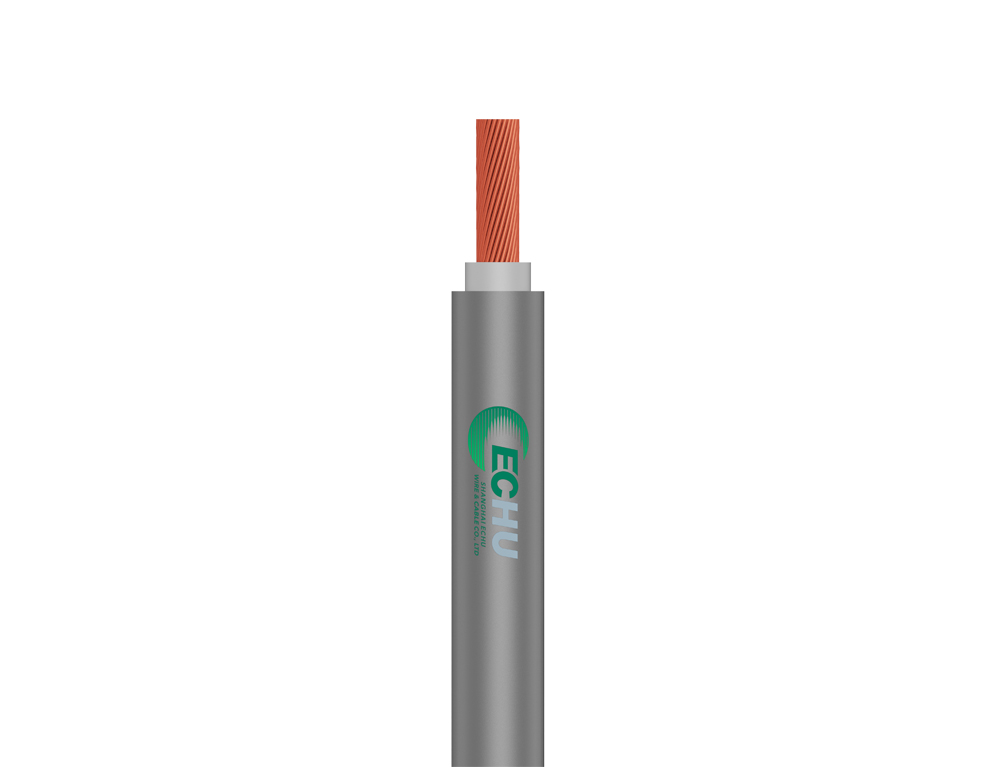

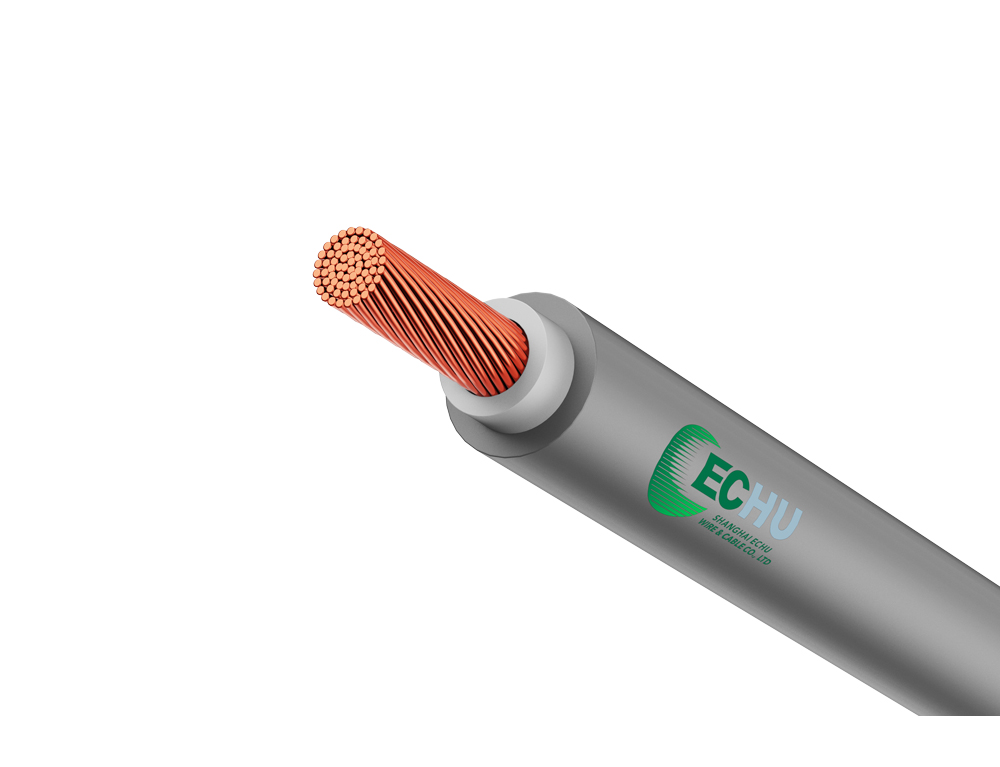

The NH-BVR Fire Resistant LSZH Cable is a high-quality, single-core, PVC-insulated conductor designed for reliable performance in demanding environments. Constructed with high-purity Class 2 conductors and wrapped with mica tape, this cable offers excellent fire resistance and low smoke, zero halogen (LSZH) characteristics. It is suitable for systems requiring a rated voltage of 450/750V, providing enhanced safety and durability. Ideal for installations where stringent fire safety is a priority.
- Communication equipment
- Electronic transmission equipment
- Electrical control cabinets
- Distribution boxes
- Telephone switchboards
- High fire-resistance requirement areas
| Electrical Performance | Voltage | AC 300/500V: Applicable for 0.5-1.0 mm² cross-sectional areas. |
| AC 450/750V: Applicable for cross-sectional areas of 1.5 mm² and above. | ||
| Rated Temperature | 70°C | |

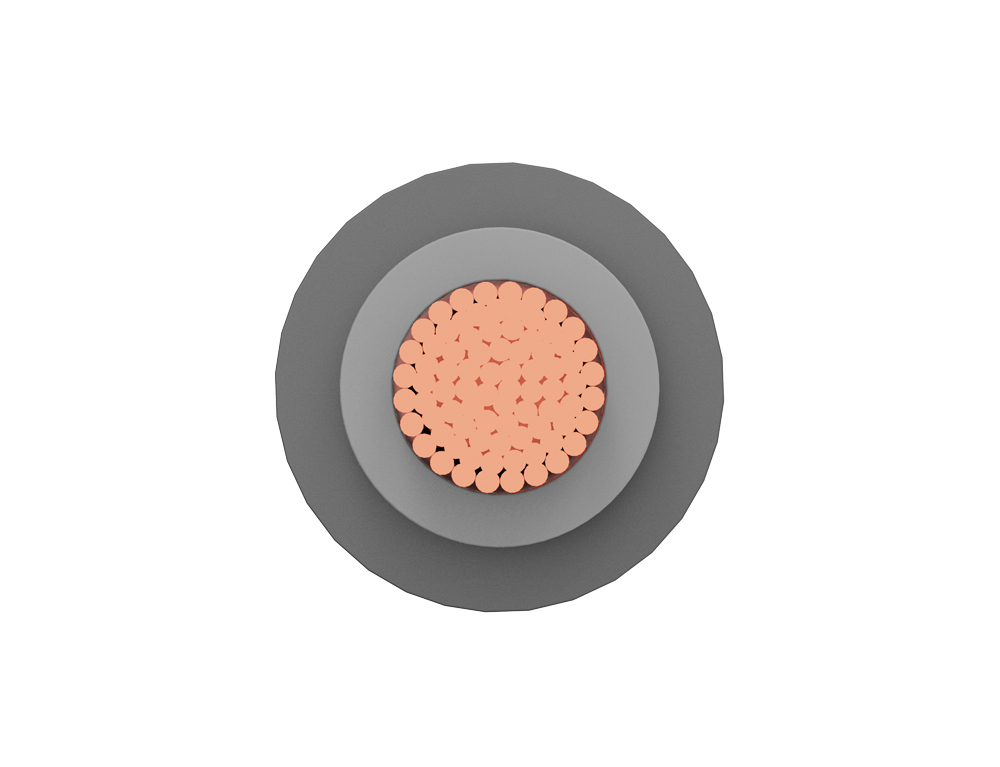

| Construction | Conductor | Bare copper |
| Fire-resistant Layer | Mica tape | |
| Insulation | PVC | |
| Flame Retardancy | Conforms to IEC60332-1-2 standard | |
| Color | Optional | |
