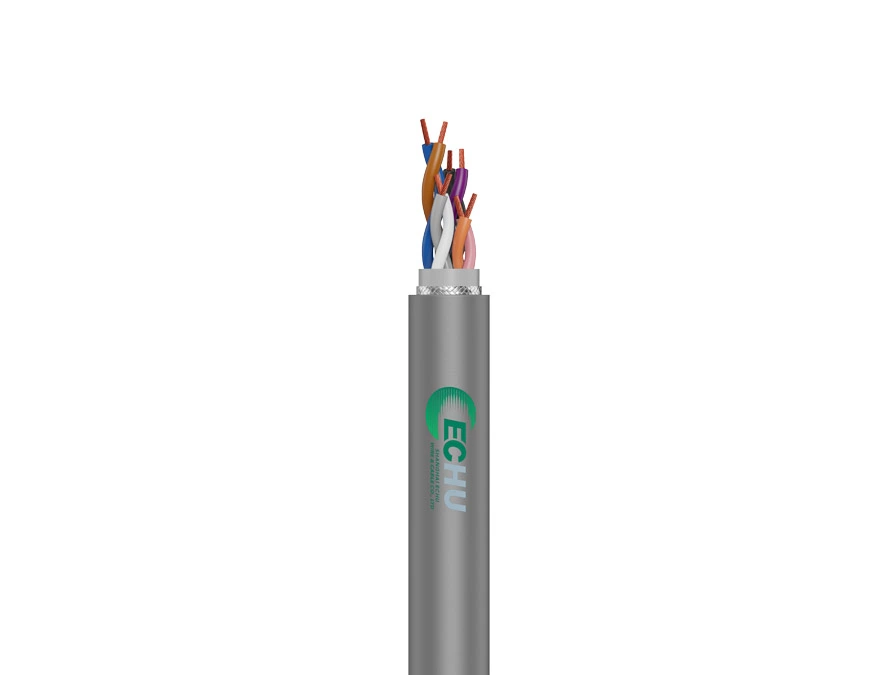

The EKM51573 Shield Low Speed Drag Chain Cable is specially designed for dynamic applications, featuring a single sheath and twisted pair shielded flexible PVC jacket. It offers cost-effective performance with optimized twisting pitch and 80% braided shielding density, ensuring excellent electromagnetic interference resistance. The cable uses high-quality PVC insulation with a premium flexible matte PVC jacket, guaranteeing durability with a drag chain lifespan of up to 5 million cycles. Ideal for applications requiring reliable, low-speed movement.
- Suitable for installation in dry or damp indoor environments.
- Designed for repeated free reciprocating motion.
- Ideal for industrial applications with frequent bending.
- Applicable in woodworking machinery.
- Compatible with machining and processing equipment.
- Used in logistics and transportation systems.
- Functional in crane installations.
Electrical Performance | Voltage | AC300/300V for conductor sizes 0.5mm² and below |
AC300/500V for conductor sizes above 0.5mm² | ||
Rated Temperature | 70°C | |
Construction | Conductor | Bare copper |
Insulation | PVC | |
Braiding | Bare copper wire | |
Sheath | PVC | |
Flame Retardancy | Compliant with IEC 60332-1-2 | |
Default Sheath Color | Black (Other colors available upon request by the customer) |
