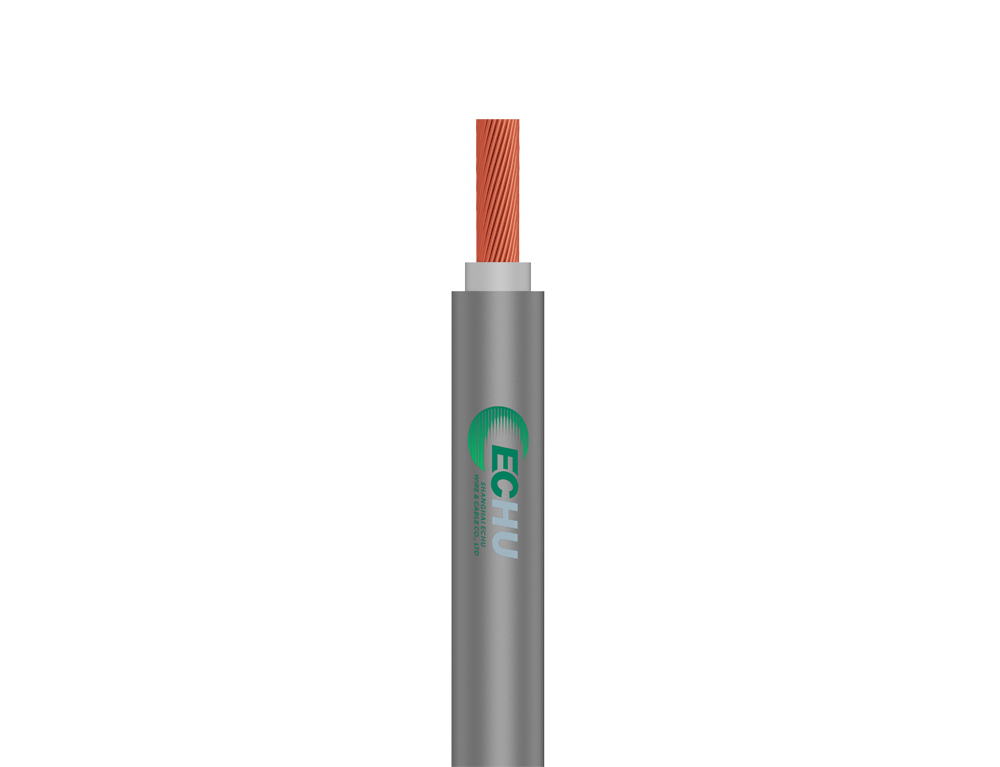

The NH-RV Fire Resistant LSZH Cable features a highly flexible Class 5 stranded conductor with a mica tape wrapping for enhanced fire resistance. Encased in premium-grade PVC insulation, this single-core, non-sheathed cable is designed for reliable performance in environments requiring both fire resistance and low smoke, zero halogen (LSZH) emissions. Ideal for critical installations where maintaining circuit integrity during a fire is essential.
- Electrical control cabinets
- Distribution boxes
- Telephone exchanges
- High fire-resistance demand areas
Electrical Performance | Voltage | AC 300/500V for wire sizes 0.5mm² to 1.0mm² |
AC 450/750V for wire sizes 1.5mm² and above | ||
Rated Temperature | 70°C | |
Construction | Conductor | Bare copper |
Fire-resistant Layer | Mica tape | |
Insulation | PVC | |
Flame Retardancy | Compliant with IEC 60332-1-2 | |
Color | Available in various colors |
