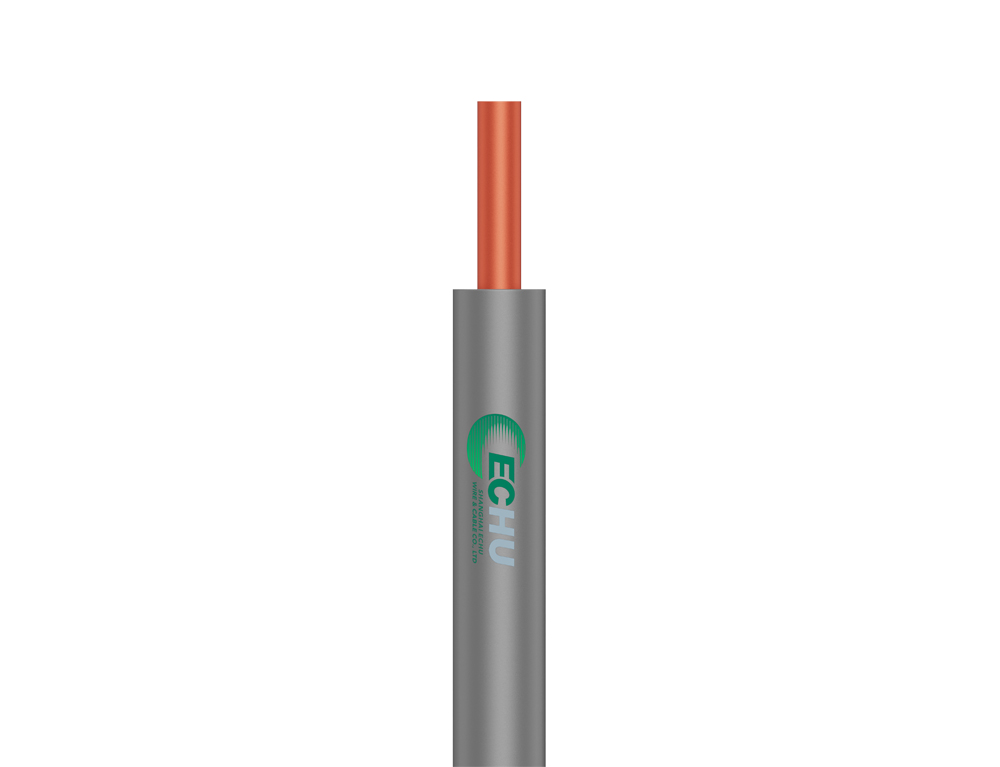

The WDZ-BV LSZH Flame Retardant Single Core Cable is designed with a high-purity hard conductor and insulated with low-smoke, halogen-free polyolefin. This cable ensures enhanced safety by offering flame retardant properties that meet IEC 60332-1-2 standards. Ideal for installations requiring minimal smoke emission and no halogen, it delivers reliable performance for secure, environmentally-conscious applications.
- Suitable for communication equipment
- Used in electronic transmission devices
- Applicable in electrical control cabinets
- Ideal for distribution boxes
- Compatible with telephone exchange systems
- Not intended for external power connections due to single-layer insulation
| Electrical Performance | Voltage | AC 300/500V for wire cross-sections ranging from 0.5 mm² to 1.0 mm² |
| AC 450/750V for wire cross-sections of 1.5 mm² and above | ||
| Rated Temperature | 90°C | |
| Structure | Conductor | Bare copper |
| Insulation | Low smoke zero halogen (LSZH) polyolefin | |
| Flame Retardancy | Compliant with IEC 60332-1-2 | |
| Color | Available in any color as specified | |
