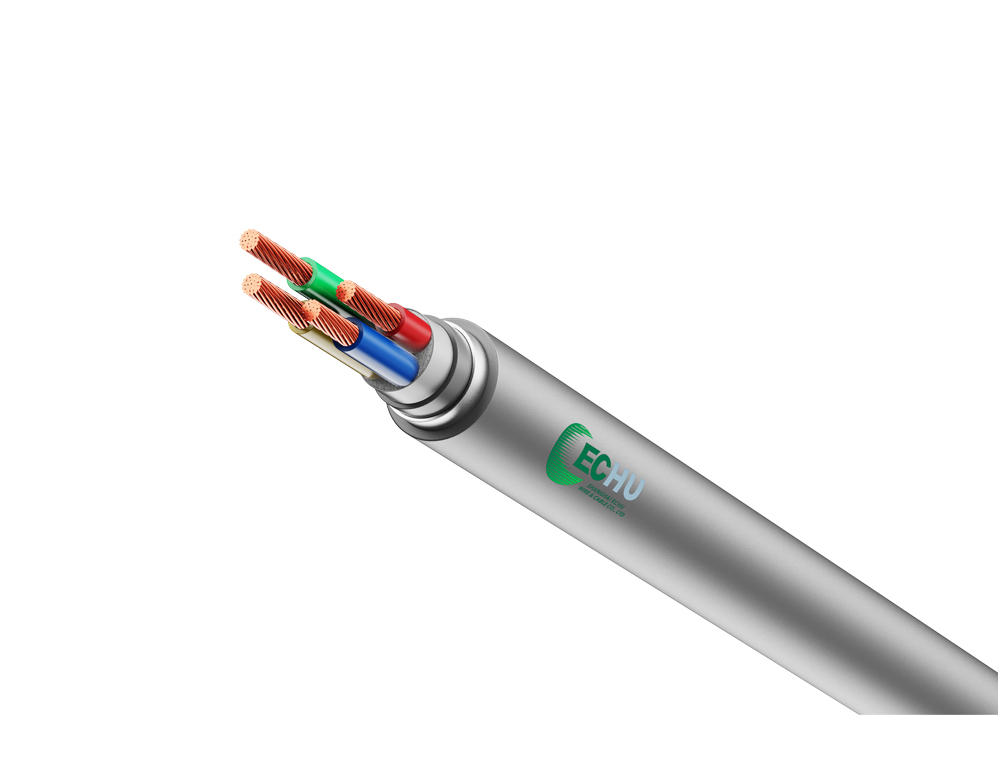

The YJV23 Cross-linked Polyethylene Insulated Power Cable is a high-performance cable designed for 600/1000V rated systems. It features a high-purity oxygen-free copper conductor with XLPE insulation and a low-smoke, halogen-free polyolefin sheath. The steel tape armor enhances the cable's durability and resistance to compression, making it suitable for demanding environments. This cable meets national standards and ensures reliable power transmission with superior electrical and mechanical properties.
- Suitable for AC rated voltage 0.6/1kV circuits
- Used in power transmission systems
- Applied in distribution systems
| Electrical Performance | Voltage | AC 0.6/1kV |
| Rated Temperature | 90℃ | |
| Construction | Conductor | Bare Copper |
| Insulation | XLPE (Cross-linked Polyethylene) | |
| Inner Sheath | Low Smoke Halogen-Free Polyolefin | |
| Armor | Galvanized Steel Tape | |
| Outer Sheath | Low Smoke Halogen-Free Polyolefin | |
| Flame Retardance | Complies with IEC 60332-1-2 | |
| Default Sheath Color | Black. Other colors can be customized according to customer requirements. | |
