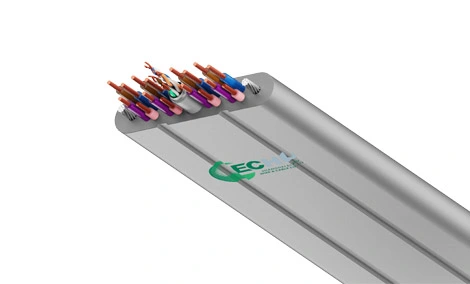

Elevator Cable

Voltage: AC 300/500V for wire sizes 0.5--1.0mm²,
AC 450/750V for wire sizes 1.5mm² and above
Temperature: 70°C
Conductor: Bare Copper
Insulation: PVC
Sheath: PVC

Voltage: AC 300/500V for conductor sizes 0.5-1.0mm²,
AC 450/750V for conductor sizes 1.5mm² and above
Temperature: 70°C
Conductor: Bare Copper
Insulation: PVC
Reinforcement: Steel Wire
Sheath: PVC

Voltage: AC 300/500V for cross-sectional areas from 0.5 mm² to 1.0 mm²,
AC 450/750V for cross-sectional areas from 1.5 mm² and above
Temperature: 70°C
Conductor: Bare Copper
Insulation: PVC
Braid: Bare Copper or Tin-coated (optional)
Sheath: PVC

Voltage: AC 300/500V for wire sizes 0.5-1.0mm²,
AC 450/750V for wire sizes 1.5mm² and above
Temperature: 70°C
Conductor: Bare Copper
Insulation: PVC
Braiding: Bare copper or tinned copper (optional)
Reinforcement: Steel wire
Sheath: PVC

Rated Temperature: 70°C
Conductor: Bare Copper
Insulation: PE
Reinforcement: Steel Wire
Sheath: PVC

Temperature: 70°C
Conductor: Bare Copper
Insulation: PE
Reinforcement: Steel Wire
Sheath: PVC

Voltage: AC 300/500V
Temperature: 70℃/90℃
Conductor: Bare Copper
Insulation: PVC
Reinforcement: Steel Wire (H05V3V3D3H6-F)
Sheath: PVC

Voltage: AC 300/500V for conductor sizes 0.5-1.0mm²,
AC 450/750V for conductor sizes 1.5mm² and above
Temperature: 90°C
Conductor: Bare Copper
Insulation: Low smoke zero halogen (LSZH) polyolefin
Braiding: Bare copper or tinned copper (optional)
Sheath: Low smoke zero halogen (LSZH) polyolefin

Voltage: AC 300/500V for sizes 0.5mm² to 1.0mm²,
AC 450/750V for sizes 1.5mm² and above
Temperature: 90°C
Conductor: Bare copper
Insulation: Low smoke halogen-free polyolefin
Reinforcement: Steel wire
Sheath: Low smoke halogen-free polyolefin

Voltage: AC 300/500V for 0.5-1.0 mm²,
AC 450/750V for 1.5 mm² and above
Temperature: 90°C
Conductor: Bare copper
Insulation: Low smoke, halogen-free polyolefin
Braiding: Bare copper or tinned copper (optional)
Reinforcement: Steel wire
Sheath: Low smoke, halogen-free polyolefin
